How to Configure WordPress WhatsApp Chat Button & Widget

Delivering a direct, seamless communication channel for your website visitors is essential for maximizing conversion rates and customer satisfaction. The WhatsApp Chat Button & Widget module provides a premium, customizable floating chat button and contact card rendered on the frontend of your WordPress site. It supports multiple support agents, omnichannel social profile links, detailed interaction tracking analytics, and granular page visibility exclusions.

The Five-Tab Configuration Architecture

The WhatsApp Chat Widget configuration dashboard organizes settings into five dedicated, tab-controlled sections. This allows you to easily manage agents, social links, analytical reports, visual styles, and page-specific visibility rules.

Tab 1: WhatsApp (Primary Configuration)

The WhatsApp tab controls the general widget activation state, primary chat card content, and your support team agent directory.

1. WhatsApp Widget Status

• Toggle Control: General toggle (wawp_enable_button set to yes or no) to instantly publish or hide the widget globally on the frontend.
• Dynamic Status Indicators: Displays real-time status notices depending on the toggle:
  • 🟢 The WhatsApp floating button is currently active on your website.
  • ⚪ The WhatsApp floating button is currently hidden from your visitors.

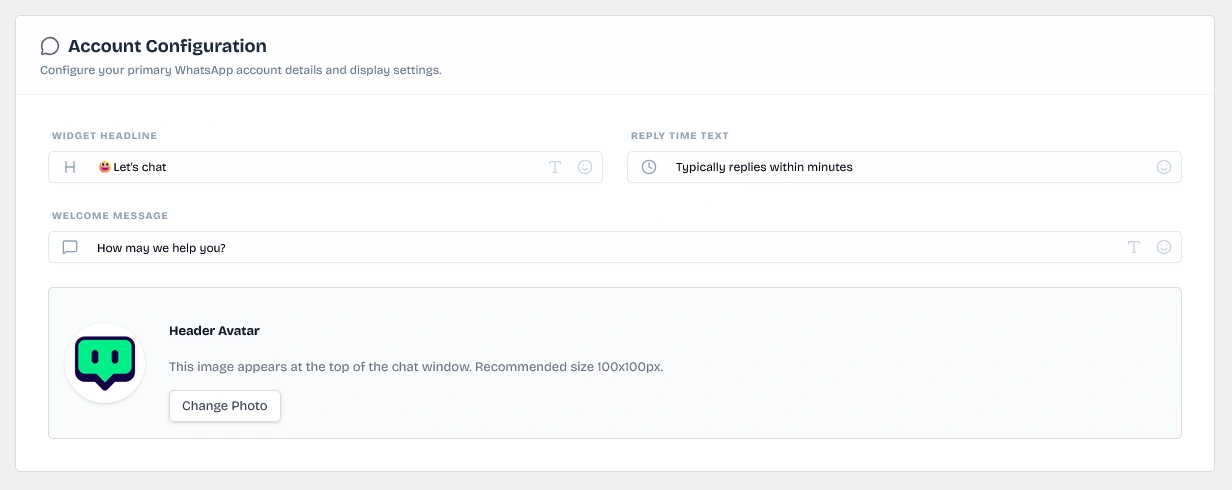

2. Account Configuration

Customize the primary header copy and welcome styling of the floating chat window:

• Widget Headline: The main title displayed at the top of the chat window (e.g., Let's Chat or Customer Support).
• Reply Time Text: A helpful indicator display under the header alongside a clock icon to manage expectations (e.g., Typically replies in minutes or Online now).
• Welcome Message: A customizable text block appearing in the window body, supporting emoji inserts and rich text formatting, inviting users to reach out.
• Header Avatar: The primary circular image shown in the header card. Click the image placeholder to open the native WordPress Media Library to upload or select custom avatars.

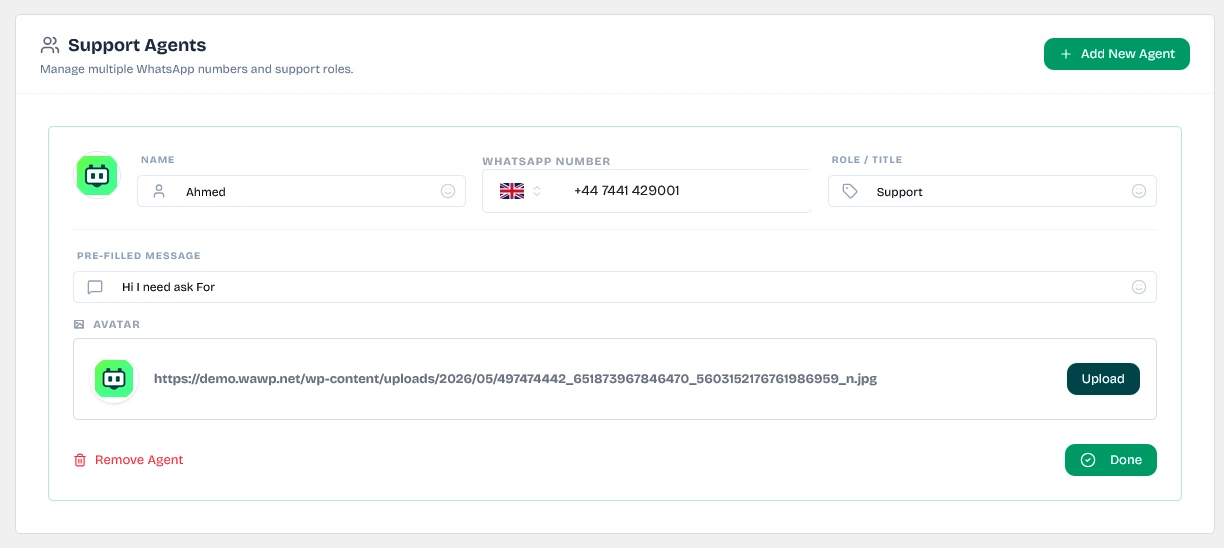

3. Support Agents Directory

Define multiple WhatsApp contacts so visitors can direct their inquiries to the appropriate department (e.g., Sales, Billing, Tech Support).

• Collapsed Agent Summary: Renders configured agent profiles in a clean overview list showing Name, Number, and Role, alongside Edit and Delete buttons.
• Add Agent (Add New Agent): Click to append a blank agent card.
• Detailed Agent Settings (Edit Mode):
  • Name: The agent's display name appearing on the contact row.
  • WhatsApp Number: The target phone number to receive messages, using standard dialing formats.
  • Role / Title: Department title appearing under the agent's name (e.g., Billing Support or Sales Manager).
  • Pre-filled Message: The default message text pre-populated in the user's WhatsApp input field when starting a chat (e.g., Hello! I have a question about my order.).
  • Agent Avatar: A dedicated circular profile image for the individual agent, integrated with the WordPress Media Library.

Tab 2: Social Links (Omnichannel Support)

Connect additional social platforms to provide visitors with alternative ways to contact your brand.

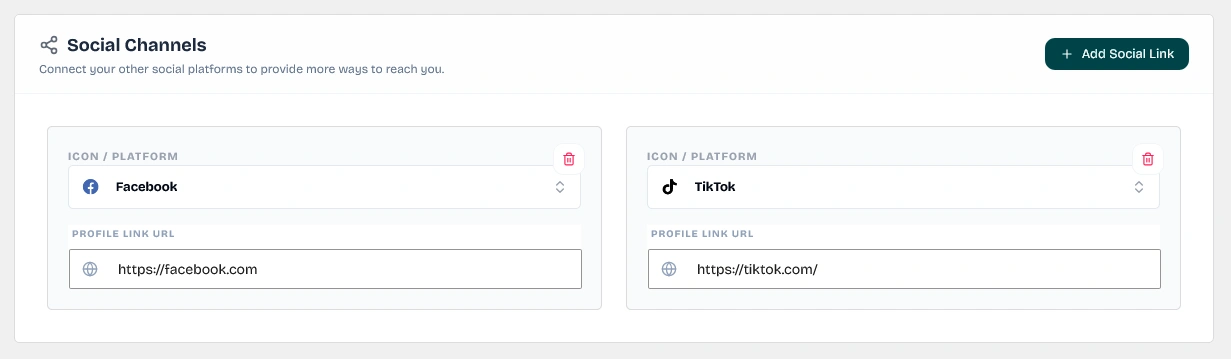

• Social Channels: Add profile links for your other platforms. Select your target platform from a searchable dropdown pre-populated with Remix Icons mapping official brand colors (e.g., Facebook, Instagram, Telegram, LinkedIn, etc.), and input your profile URL.

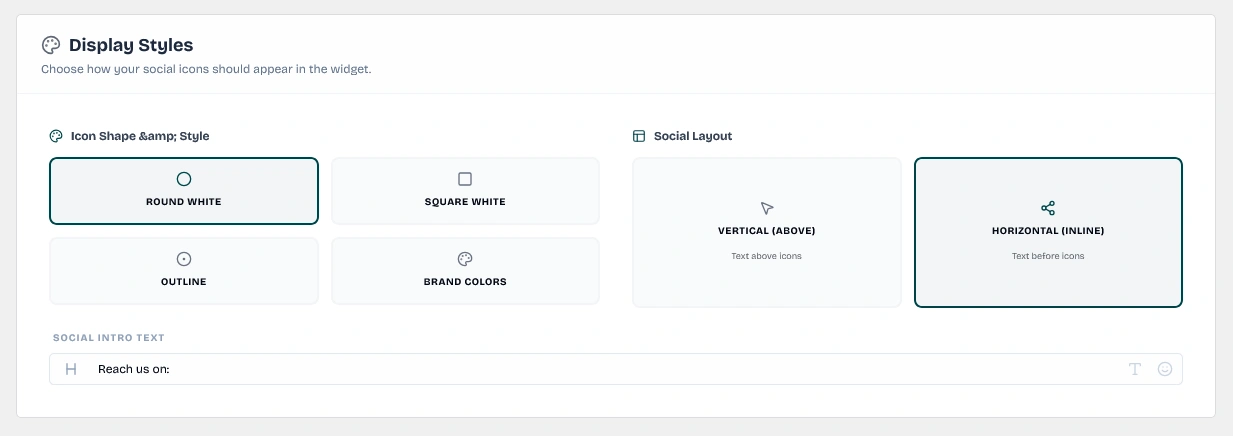

• Display Shape & Style: Choose how the social link buttons appear in the widget footer:
  • Round White: Renders circular white buttons with contrasting platform icons.
  • Square White: Renders square white buttons with rounded corners.
  • Outline: Renders subtle, thin outline circular buttons.
  • Brand Colors: Renders buttons utilizing each platform's official brand colors.

• Social Layout: Define how the social links section is aligned:
  • Vertical (Above): Intro text stacked above a grid of social icons.
  • Horizontal (Inline): Intro text and icons arranged in a single horizontal row.

• Social Intro Text: Custom introductory copy displayed preceding the social icon row (e.g., Reach us on: or Follow our updates:).

Tab 3: Analytics (Engagement Dashboard)

The Analytics tab hosts a high-performance statistics reporting dashboard tracking visitor interactions in real-time.

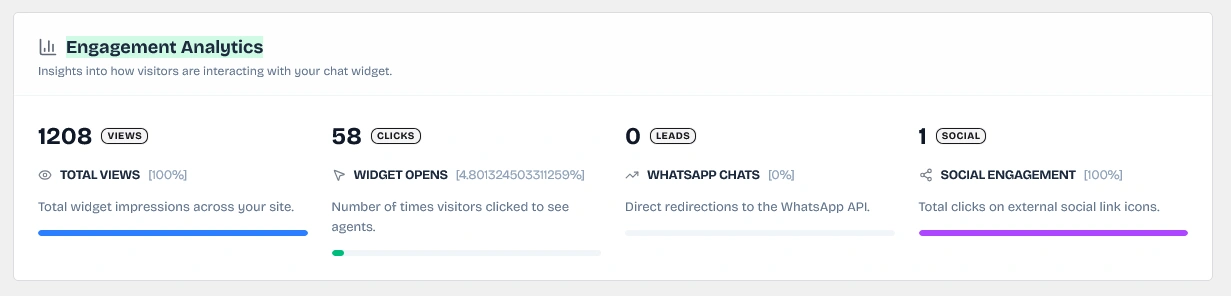

1. Core KPIs Snapshot Grid

• Total Views: The total number of times the chat button has been loaded and displayed to visitors.
• Widget Opens: Clicks on the floating button to open the contact card. Displays the overall interaction conversion rate: (opens / views) * 100.
• WhatsApp Chats: Number of clicks directing visitors to the WhatsApp API. Represents active lead conversion rate: (chats / opens) * 100.
• Social Engagement: The cumulative count of clicks on external social media link icons in the widget footer.

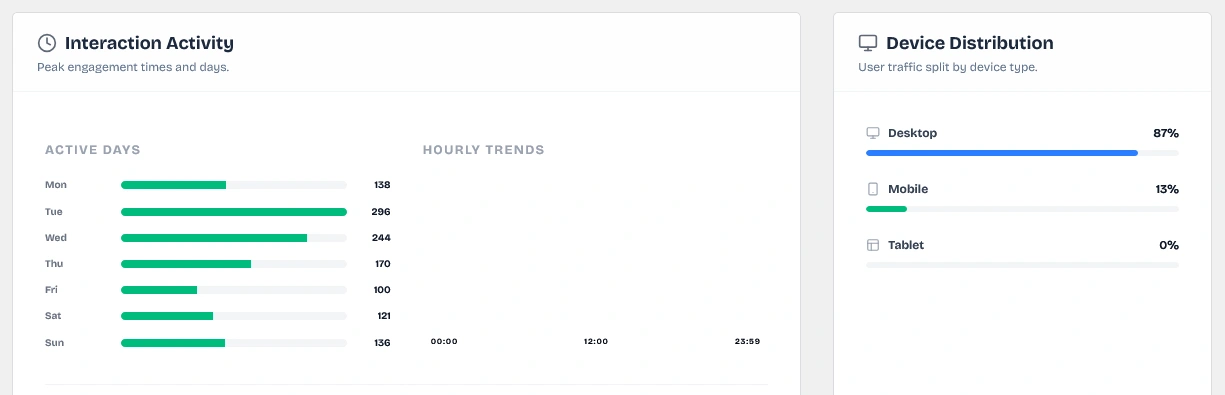

2. Timeline Graphs

• Active Days: A clean bar graph plotting total click distributions across days of the week (Monday through Sunday) to identify your busiest days.
• Hourly Trends: A vertical 24-hour histogram visualizing peak engagement hours throughout the day (00:00 to 23:59) to help you schedule active agent availability.

3. Content and Team Performance Metrics

• Top Performing Pages: Renders the top 5 pages on your site that generate the highest clicks and active WhatsApp leads.
• Top Support Agents: Performance ranks for your individual team members based on total WhatsApp leads generated.
• Device Distribution: Visual split analysis of visitor device traffic: Desktop (blue), Mobile (green), and Tablet (orange).

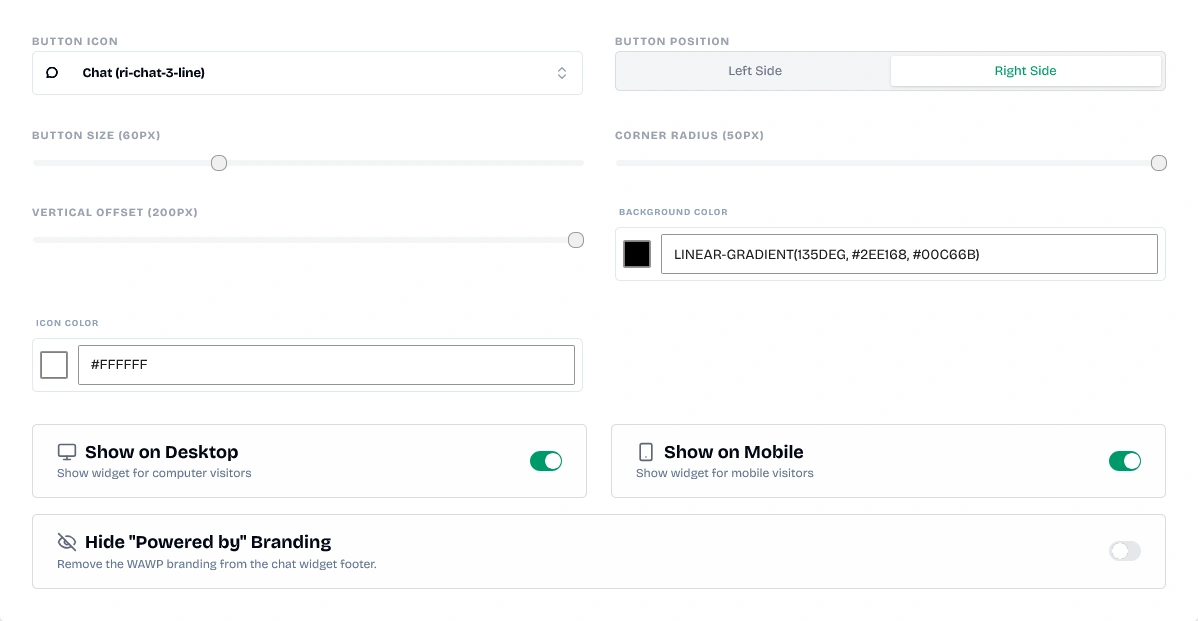

Tab 4: Appearance (Styling and Visibility)

Fine-tune the size, color, placement, and device visibility of the floating WhatsApp button.

• Button Icon: Select your primary button icon from a searchable dropdown of classes (defaults to the standard WhatsApp balloon icon if left blank).
• Button Position: Set the floating button placement side to either Left Side or Right Side.
• Button Size: Slide-range control to size the floating button from 40px up to 100px.
• Corner Radius: Slider setting from 0px (sharp square button) to 50px (completely circular button) to match your site's design style.
• Vertical Offset (Bottom Margin): Slide-range controller from 0px to 200px to offset the button vertically, preventing overlaps with back-to-top anchors or other site elements.
• Custom Colors: Dedicated color-picker inputs to set the button's Background Color and Icon Color.
• Device Visibility: Toggle visibility separately for Desktop (computer visitors) and Mobile (mobile and tablet visitors).
• Branding Control ("Powered by"): Toggle whether to display or hide the Powered by WAWP branding link in the widget footer:
  • Pro Restriction: Free tier installations are locked with a Paid Plan Crown badge overlay. Upgrading to a paid plan (Starter, Growth, or Premium) is required to hide the branding link.

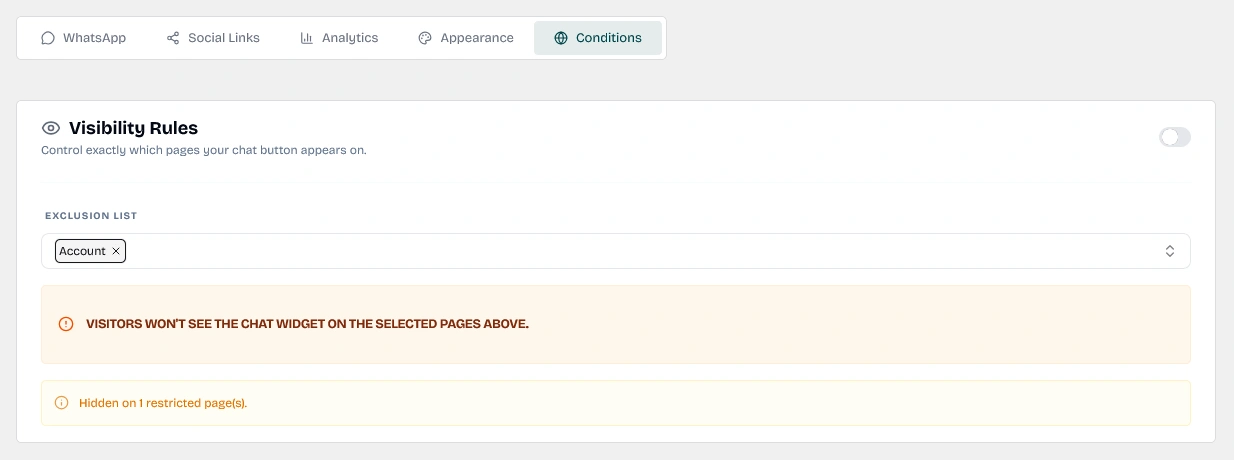

Tab 5: Conditions (Page-Specific Exclusions)

Control exactly which parts of your website display the floating chat widget.

• Visibility Rules: Set wawp_trigger_on_all_pages to yes to display the widget globally across all public pages.

• Exclusion Lists: When visibility is restricted (no), a tags search input (MultiSelectTagify) appears. Select specific WordPress pages to hide the widget on.

• Exclusion Warning Notice: An orange alert notice confirms: ⚠️ Visitors won't see the chat widget on the selected pages above.
